Large Area Subsurface Surveys
Expert Large Area Subsurface Survey Services: Serving Vancouver, Victoria, Kelowna, Calgary, Regina and All of Western Canada
Unlock Precise, Reliable Data with Over 50 Years of Geophysical Expertise
Terraprobe specializes in Large Area Ground Penetrating Radar (GPR) Survey projects from our base in Vancouver and extending our services throughout Western Canada. From pinpointing buried utilities to detecting voids and abandoned concrete works, our surveys cover areas ranging from a few acres to over 100 acres in size. Our expert team gathers and meticulously processes vast amounts of data to deliver high-quality reports and drawings, ensuring thorough pre-construction analysis for your project.
Why Choose Terraprobe?
- Advanced Technology and Expertise:
50+ Years of Experience
Our team brings over half a century of cumulative expertise in geophysics, structural engineering, and earth sciences.
Cutting-Edge GPR Technology
We utilize the most advanced GPR equipment available, constantly updated through our involvement in international research and industry events.
Expert Data Interpretation
Specialized knowledge in geology, geomorphology, and sedimentology allows us to provide superior terrain analysis and reliable data interpretation.

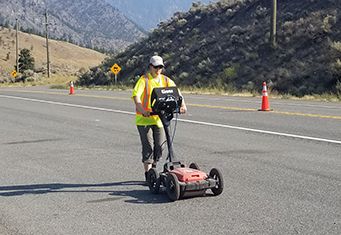

![Subsurface Survey near Hwy 1 near Hope, BC to locate possible burial sites from 1800's. Survey near Hwy 1 in Fraser Canyon to locate possible burial sites from 1800's using a single antenna system.](https://static.spacecrafted.com/aa58c1ccdce54a759fa2776d0cbfc333/i/e5b2cb3c64e6495f8fb9bf02c1347369/1/4SoifmQp45JMgBnHm9g4L/VS%20UL%20Roadway%20Web.jpg)
Industry-Leading Practices
- Comprehensive Services: From initial assessments to detailed subsurface mapping, we cover all aspects of GPR surveys.
- Custom Solutions: Each project is unique, and so are our solutions. We tailor our surveys to meet your specific requirements, ensuring optimal outcomes.
- Active Industry Participation: Our commitment to excellence is demonstrated through our active participation in workshops, conferences, and trade shows, keeping us at the forefront of GPR technology.
What our Technicians Can do for You!
Extensive archaeological sites
Detection of underground structures
Cavity identification and mapping
Area clearance prior to construction
Bedrock profiling
State of the Art Technology: The Stream-C
- High Productivity: Surveys only need to be performed in one direction to ensure optimal detection of both longitudinal and transversal pipes
- Facilitates large surveys: The system can be towed manually or with a small vehicle, increasing the acquisition speed (up to 6 km/h).
- Cost and time reductions: No need to block traffic or perform surveys at night
- Increase in accuracy with a detection accuracy of as little as 5 cm
- Increase productivity and have the ability to detect every buried target
- Highly modular structure allows it to be reconfigured to map sidewalks and difficult to access areas
- Massive array of 34 antennas in two polarizations: An accurate 3D reconstruction of the underground utility network is created in a single scan.
- Automatic Pipe Detection (APD): Real-time automatic detection of buried pipes and cables.
- Compact size: Stream C’s small dimensions enable it to survey areas inaccessible to larger array systems while maintaining the same accuracy.
- Robust construction: Built to the highest standards and with robust materials so that it can be used in harsh, demanding environments.
- 3D radar tomography: Real-time tomography on a GPS or total station assisted cartographic background.
- Professional subsurface survey: Quickly produce subsurface GIS based digital maps when pipes, cables and buried objects are automatically transferred to CAD and GIS formats.
Ready to get started?
Experience the best in large area subsurface surveys with Terraprobe. Reach out to our team to discuss your project needs, and let us show you how our precision technology and deep expertise can benefit your project. Contact us directly for more information and cost.
